Designed by a Pilot for Pilots


The first time you use any KwikPlot plotter, you'll be amazed at how fast and easy it is to plot and get your true course.

It's a four step method:

1. Draw your course line.

2. Put the center " + " of the compass rose anywhere
along the course line.

3. Line up any grid or or edge of the plotter with any
latitude or longitude line on the chart.

4. Read your true course on the compass rose.

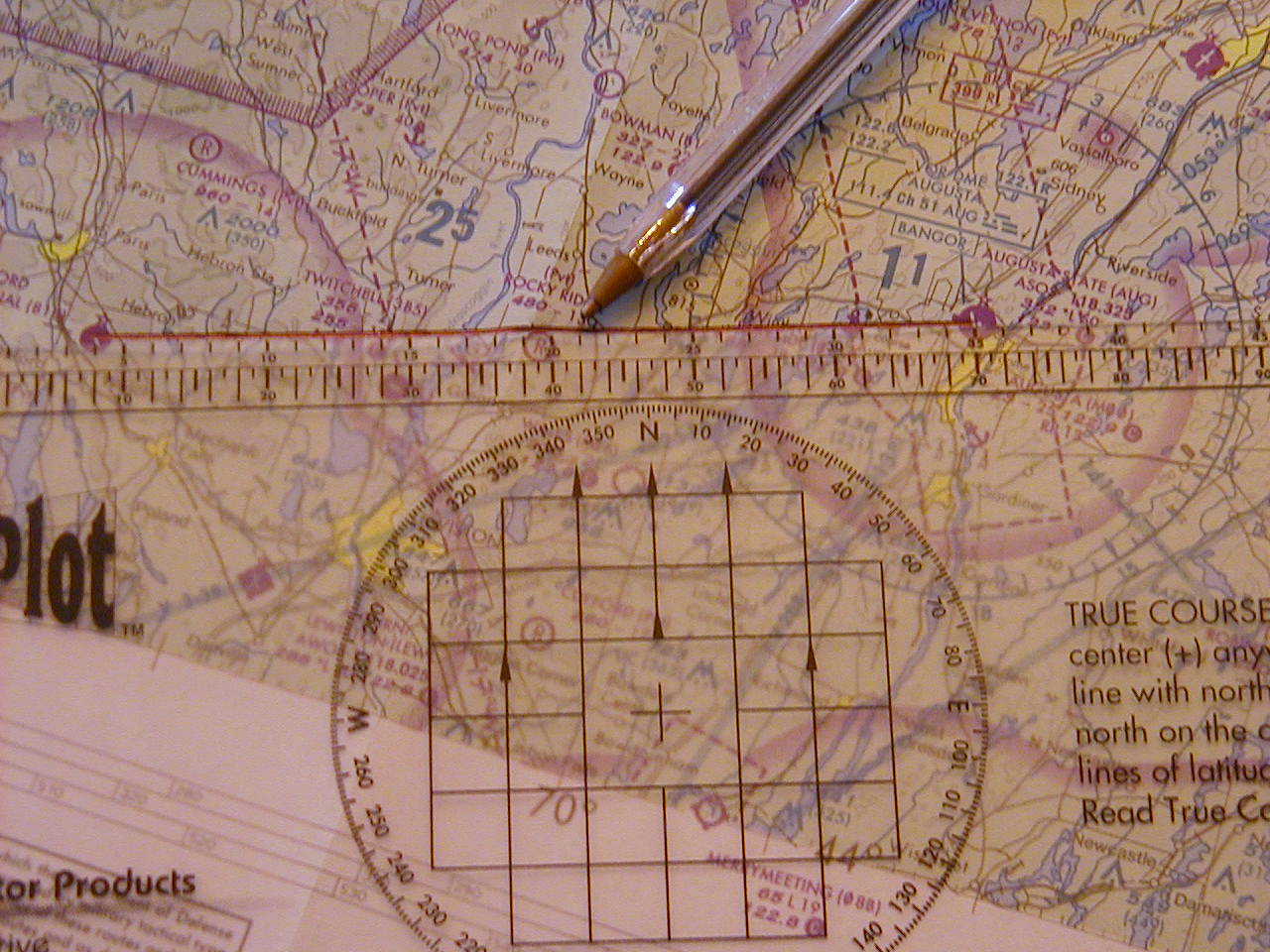

Step 1. Draw your course line

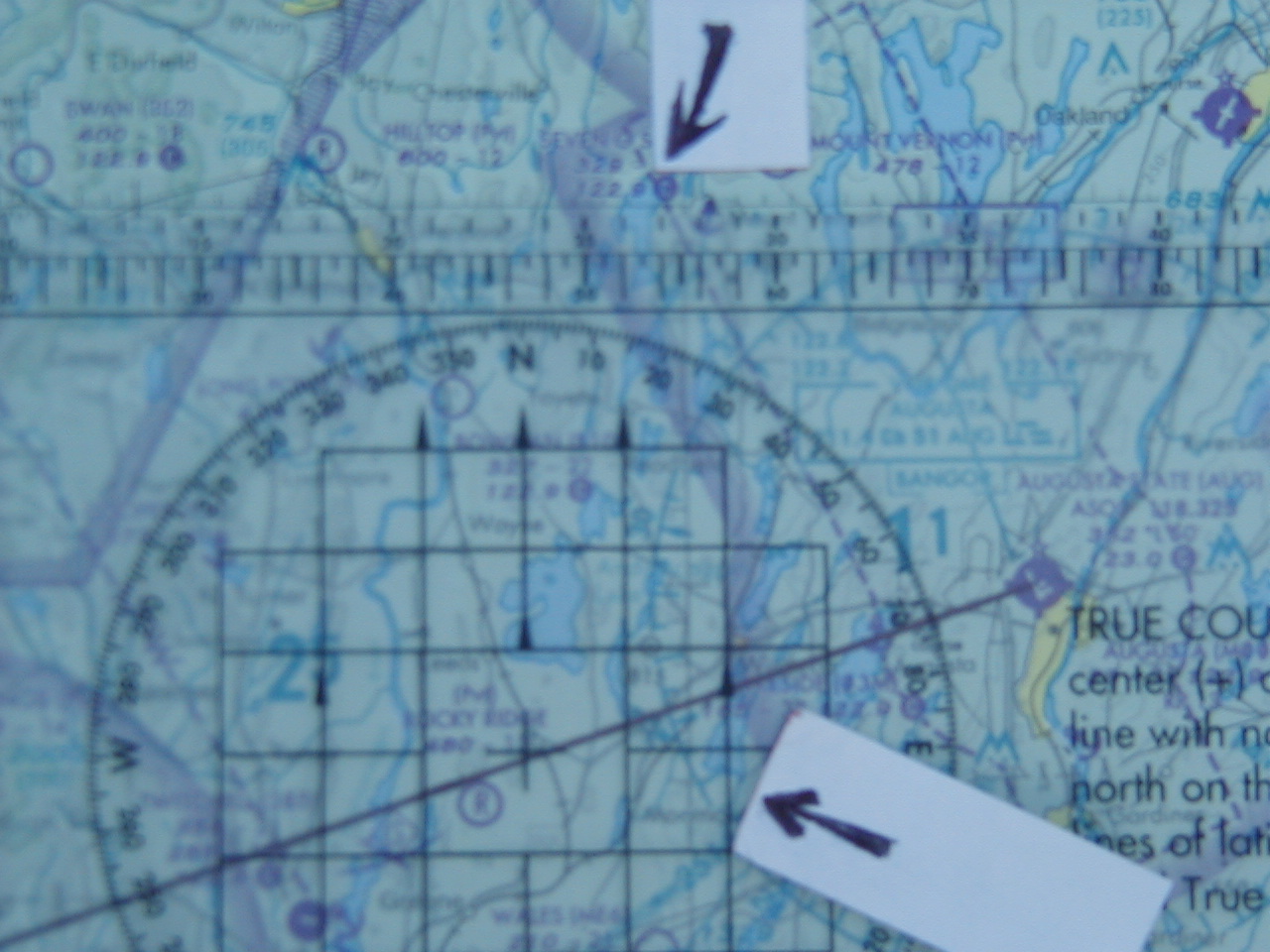

2. Put the center of the compass rose anywhere along your course line as depicted in photo.

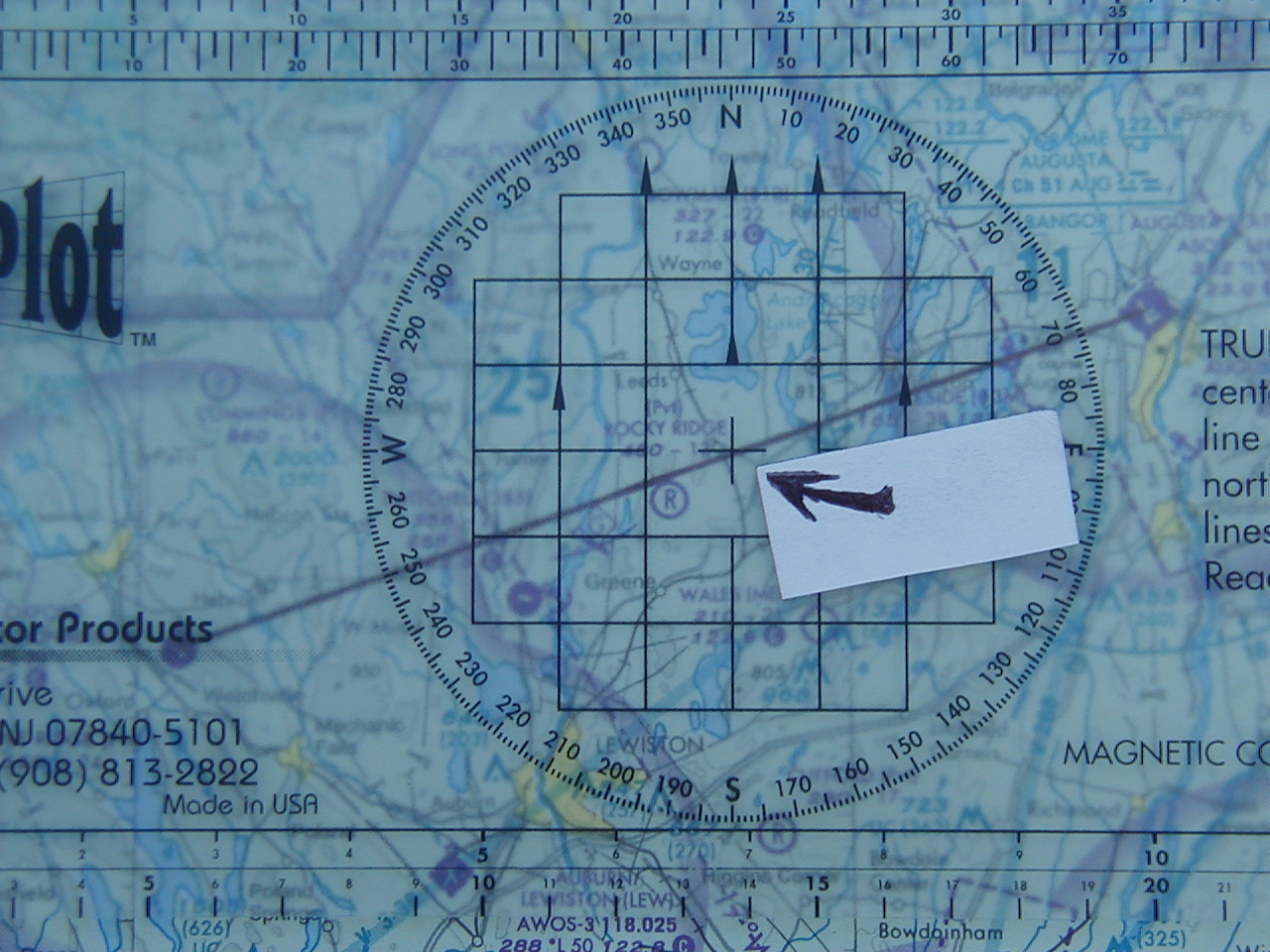

3. Line the grid or any edge of the plotter on any line of latitude or longitude line on the chart. Keep the arrows that are printed on the plotter grid in true north postion as depicted.

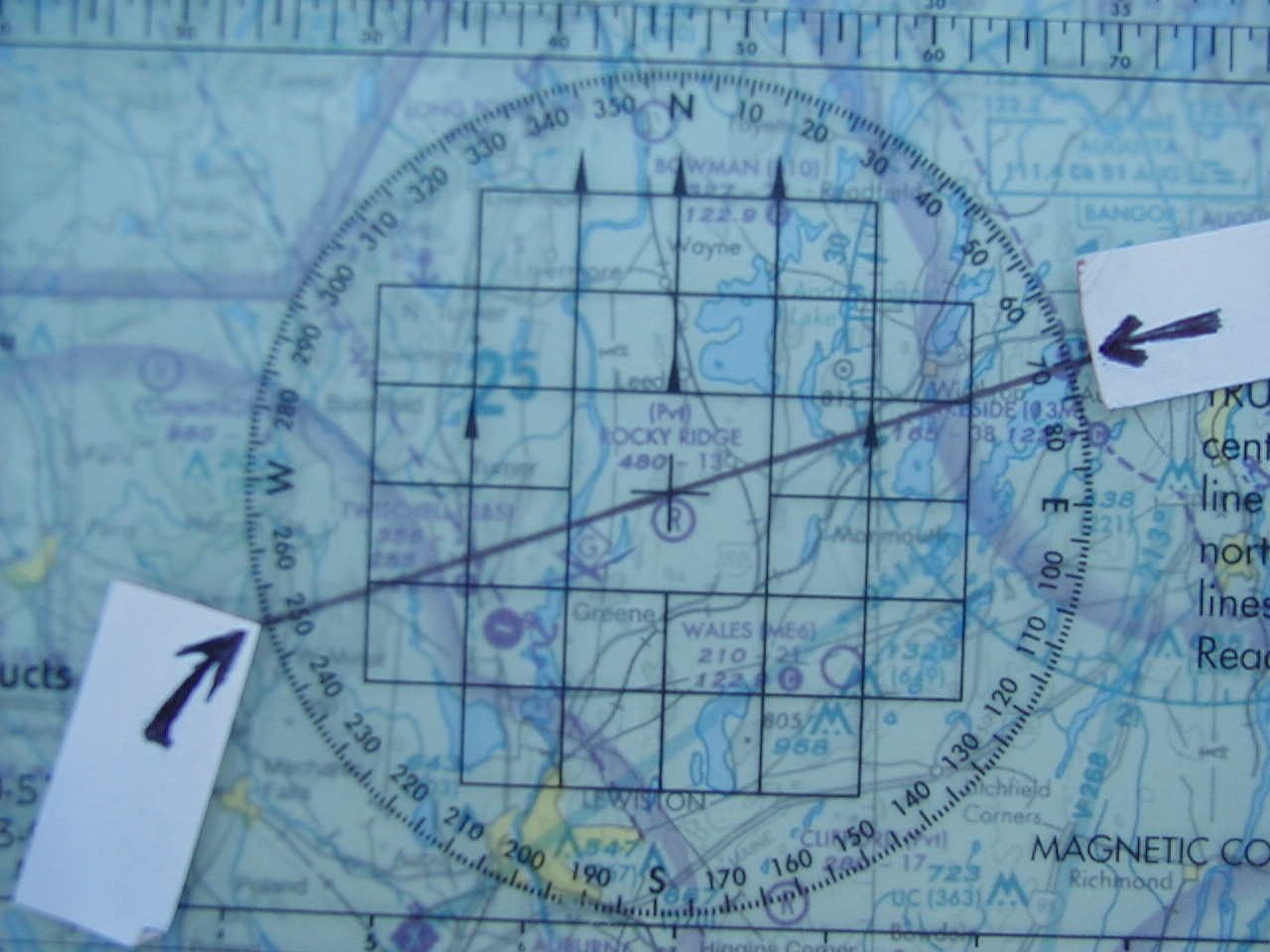

4. Read your true course on the compass rose. Once you get over how fast the KwikPlot is, you won't want to use any other plotter again!


For the MP-1 grid coordinate finder: See LAT-LON Page
